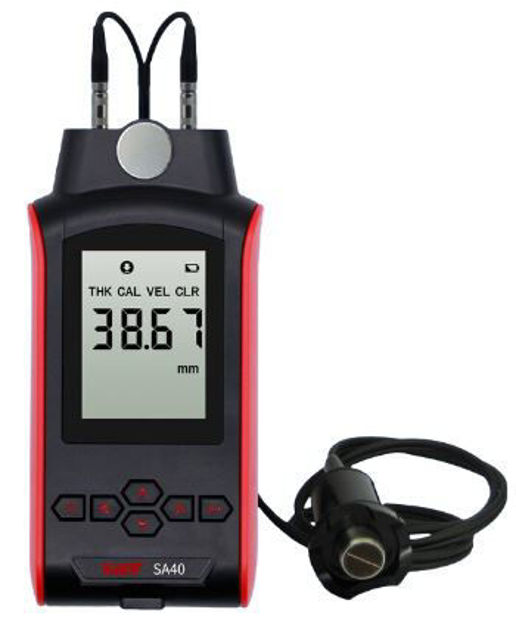

SADT SA40 Ultrasonic Material Thickness Gauge

SKU: SAD-SA-40
R10 400,00 excl VAT
The SA40 Ultrasonic Wall Thickness Gauge is a hand held thickness gauge specifically designed for measuring the thickness of metallic, and non-metallic materials from one side where it is not possible to gain access to the other side. Materials that can be measured includes : aluminium, titanium, plastics, ceramics, glass and other good ultrasonic wave-conducting materials, as long as the material has parallel top and bottom surfaces. With uses in many areas of industry, the SA40 can perform precise measurements on various types of raw materials, component parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion. The SA40 is very easy to use. After a simple calibration to a known thickness or sound velocity, the gauge will give fast and accurate readings in millimetres.
+ -

Specificiations

Model

SA40

Display

4 Digits LCD

Backlight

Yes

Measuring Range

0.7~300.0mm In Steel With PT-5 Probe

Resolution

0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm

Accuracy

0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)Mm 100.0~300.0 ±(1%+0.1)Mm

Unit

Mm/Inch

Velocity

1000~9999m/S

Coupling Indicator

Yes

Calibration

Auto

Memory

400 Data

Low Battery Indicator

Yes

Working Environment

0~40oC, 20~90%RH

Power Off

Auto

Power Supply

AA Battery X 2

Dimension (Mm)

127x66x29

Net Weight (G)

240

Standard Probe

PT-5

Optional Probes

XT-5 / GT-5 / CT2.5

SA40 Standard Packing List:

  • SA40 main unit 1
  • Standard 5MHz probe PT-5 with probe holder 1
  • Built-in calibration block 1
  • Coupling paste for normal tem perature 1
  • Test certificate 1
  • Operation manual 1
  • Carrying case 1

Optional Probes for SA40

  • XT-5 probe
  • GT-5 probe
  • CT-2.5 probe
  • PT-5 probe with probe holder
  • Coupling paste for high temperatures
