The Digital Mini allows building professionals—such as flood damage restoration contractors, surveyors, homebuilders and architects—to assess building moisture levels during new build and refurbishing activities.Excessive moisture in buildings can lead to decay and deterioration of components and decorative finishes. Professionals involved with the identification, management and remedy of moisture need tools that help them to:
Plus, the ability to add optional attachments and a patent pending reference mode enables you to compare your reading with a baseline measurement.

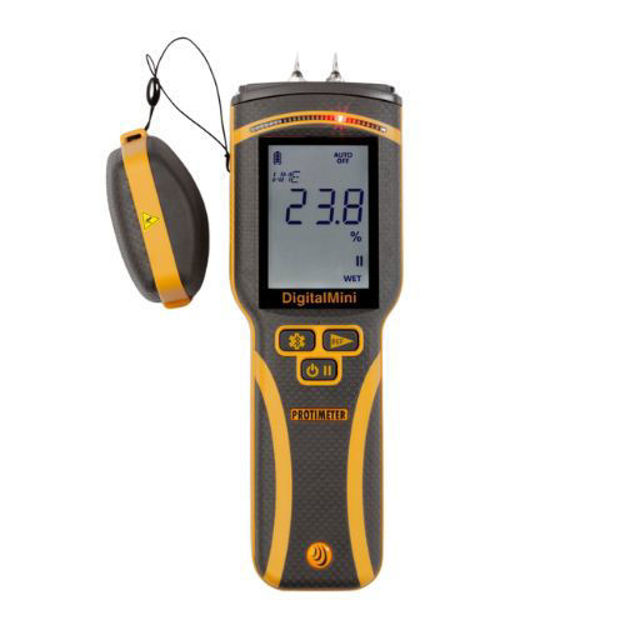

This reliable moisture meter has a pin type measurement function and shows results on the large digital display as well as the easy to interpret colour LED display. The instrument has an auxiliary port for optional moisture probes.
Features
Benefits
The Digital Mini uses the same attachment as the rest of the Protimeter range, including the Hammer Electrode including:
Wooden sub-floor and hardwood flooring
Technical Specifications
Part Number
Description
BLD5702
Protimeter Digital Mini Moisture Meter
Range
7.9% to 99% WME (Pin Measurement)
Dry (green)
7-16.9
At Risk (yellow)
17-19.9
Wet (red)
20-99.9
Display
Display 1
Digital LCD backlit
Display 2
60 LEDs green (dry), yellow (at risk) and red (wet)
Depth of moisture
Pin
Up to 12.5 mm
Case
Pouch with belt loop
Power
9 V battery (supplied)
Warranty
2 years on mechanical or manufacturing defects does not include wearing part or
Weight
225g (including Batteries)
Dimensions
190 mm x 70 mm x 49 mm
Battery
1 x 9 V 6F22R
User adjustable features
Auto shut off 1-6 mins
Hold feature
Backlight on/off
Audible on/off
Dry, At Risk and Wet Indicator on/off
Packing List
Protimeter BLD 5702 Digital Mini Moisture Meter
Auxiliary 2-Pin Moisture Probe (BLD5079-2T)
Pouch with Belt Loop
User Instructions
Wood Species Calibration Table Leaflet
Calibration Check Device
Two Spare Pins
